🔌🔌 Standardized Connectors 🔌🔌
In the past we used Hxchen GX connectors from Amazon. They were alright at dummy proofing connections between say, solenoids and loadcells, but were terrible to maintain.
Since we aren't the Avionics Harnessing sub-team, we are moving to using 15 pin male to male DSUB connectors. These are easy to buy, basically just a VGA cable for monitors, and require no maintaince in-terms of assembly. All we have to do is make connector boards to mate wires between our upstream PCB and our downstream device.

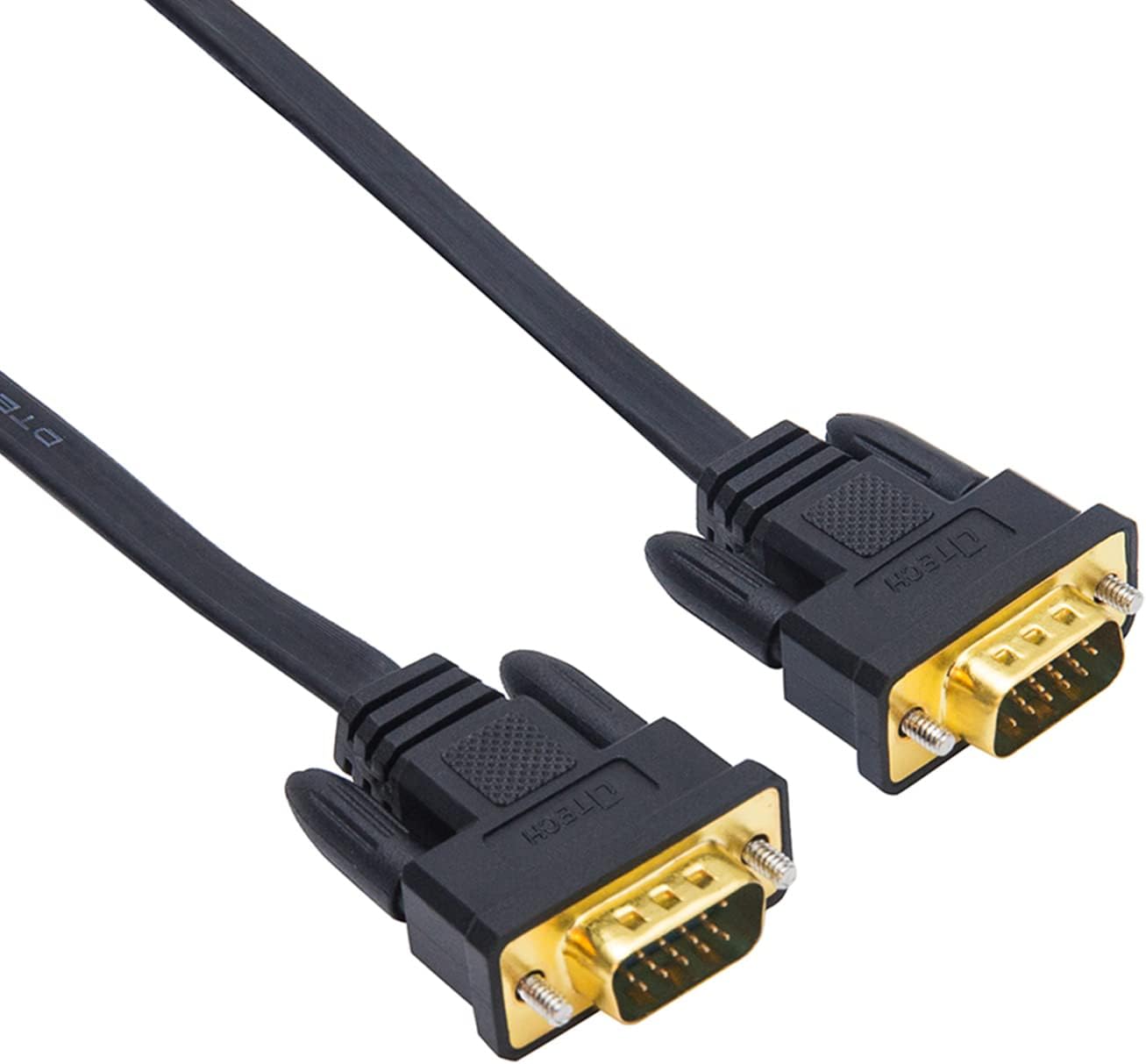

Figure 1: 15 pin DSUB / VGA cable
DSUB pinout

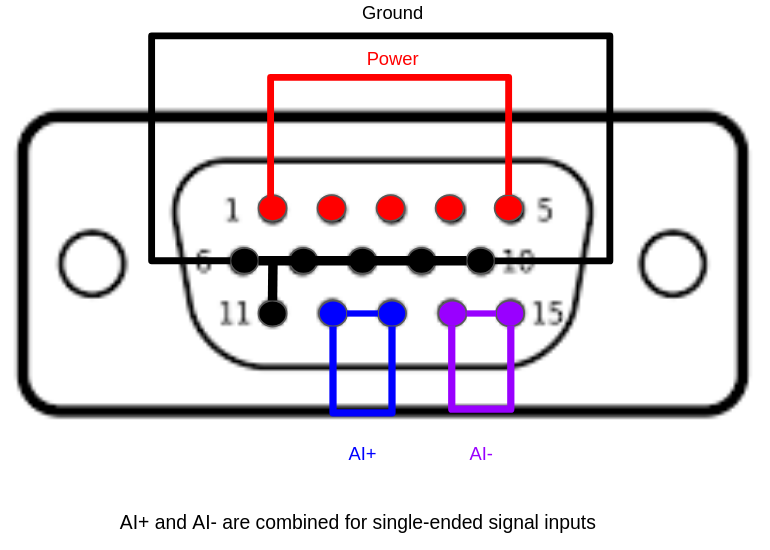

Figure 2: 15 pin DSUB pinout
Universal adapter board
Figure 2: UCIRP Universal DSUB Sensor Adapter board
We use this PCBA to connector our sensors to our Avionics stack
Inputs
| Connected to | Connector |
|---|---|
| (ECU v2.0) | 15 pin, 3 row DSUB / VGA |
| (GSE v2.1) | 15 pin, 3 row DSUB / VGA |
Outputs
| Output Sensor | Connector |
|---|---|
| Pressure Transducers: (PT) | 9.4 mini DIN |
| 10k Potentiometers (POTS) | 3 pin THT |
| Solenoids (24V) | 2 pin THT |
| LoadCell (10V, 2K lbf) | 4 pin THT |
Depreciated Connectors
This is just here for documentation of our old system
HxChen GX connectors

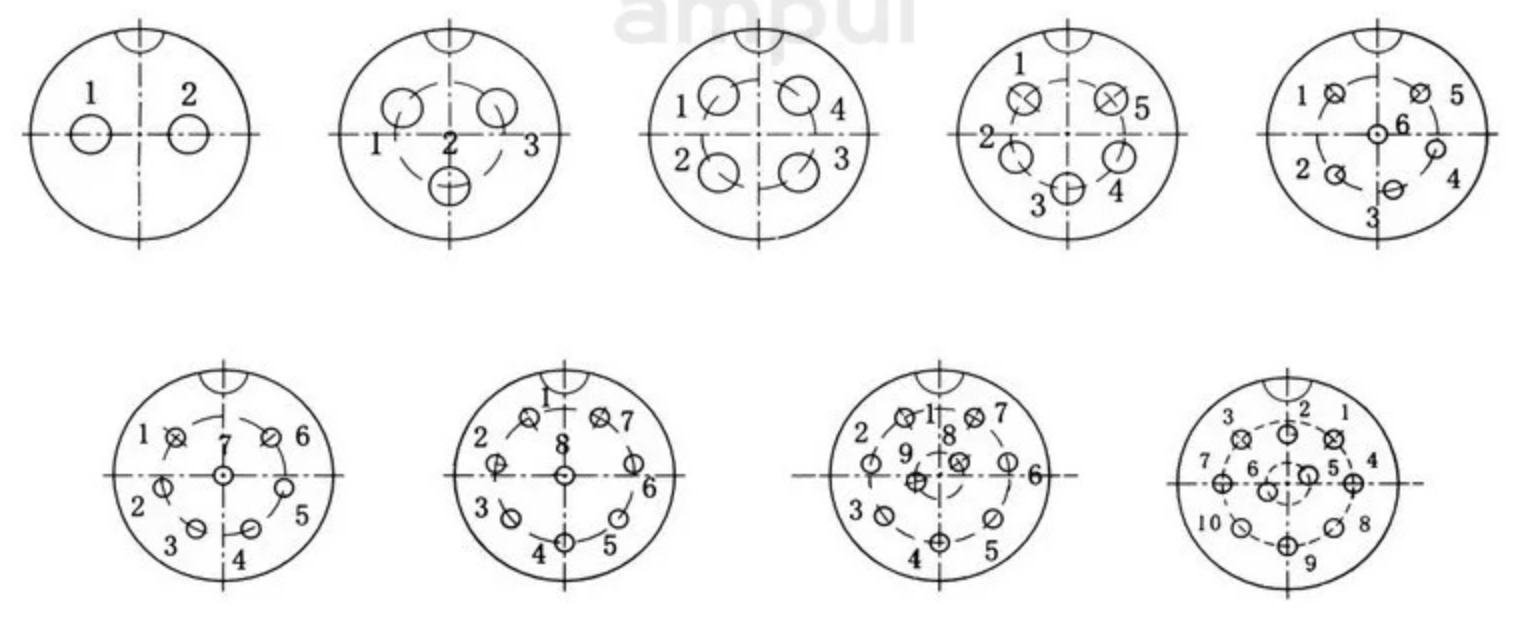

This diagram is confusing, especially because it immediately contridicts the Hxchen GX connector, the connectors we buy from amazon pinout. Pins 2 and 3 are backwards on the Hxchen GX connectors in comparison to the picture above.
To clear up any confusion in the future, this is the pinout.
RED: Power
YELLOW: Signal
BLACK: GND
24V Power
GX16 Connector \ 1: +24V \ 2: GND
Battery Power
XT60 Connector \ 1 (Square): +24V \ 2 (Round): GND
Solenoid
GX16 Connector \ 1: +24V \ 2: Control \ 3: GND
Pressure Transducer (PT)
GX12 Connector \ 1: +24V \ 2: Signal \ 3: GND
Thermocouple (TC)
ANSI Miniature Thermocouple Connector (K Type, Yellow) \ +: Nickel-Chromium \ -: Nickel-Alumel
Load Cell
GX12 Connector \ 1: Output- \ 2: 5V \ 3: GND \ 4: Output+
